FILTERS by Buchiya
Buchiya Controls Pvt. Ltd. is happy to present their latest range of FILTERS.

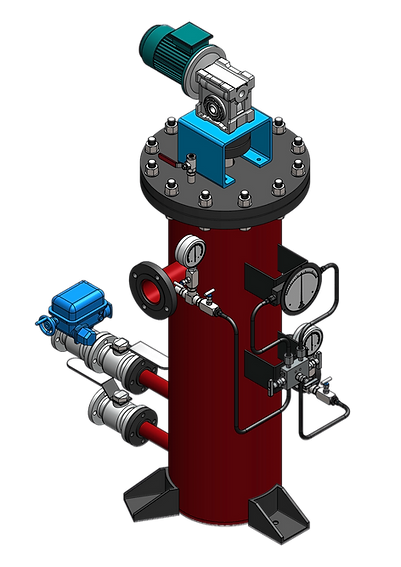

SIMPLEX AUTO BACKWASH SELF CLEANING FILTER
Debris is prevented from entering the element from the outside by the flow, which is on the clean side of the liquid flow. The element is cleaned by rotating the element with an electric motor. The rotating element with two blades that remains in contact with the element rub against it. Scraped or wiped-off debris collects at the filter's bottom and is then washed out via a drain valve that can be manually or automatically operated.
Application:
-
Chemical Industry
-
Metals & Mining
-
Water & Waste Water
-
Pulp & Paper
-
Process Industry
-
Power Industry
-
Oil & Gas
Features:
- Type: Automatic Self Cleaning.
- High Filtration Accuracy.
- No manual intervention needed for cleaning.
- Wedge wire element with longer life.
- No consumables.
- Minimal operating & maintenance cost.
Technical specifications:
-
MOC: SS304, SS316 & MS as per requirements.
-
Flow rate: 1.5 m3/h to 1,766 m3/h
-
Filtration capacity: 10 to 5,000 µm
-
Operating pressure: 0 to 100 bar and above as per site requirement.
-
Pressure loss with clean filter: 0.1 to 0.2 bar
-
End connection flange size: 15NB to DN 800NB
-
Operating temperature: 0 to 450 °C
-
Filter changeover: Manual / Auto
-
Operation of cleaning: Manual / Auto
-
Housing Fabrication: ASME B31.1 ASME B31.3 or ASME Section VIII, Div I
